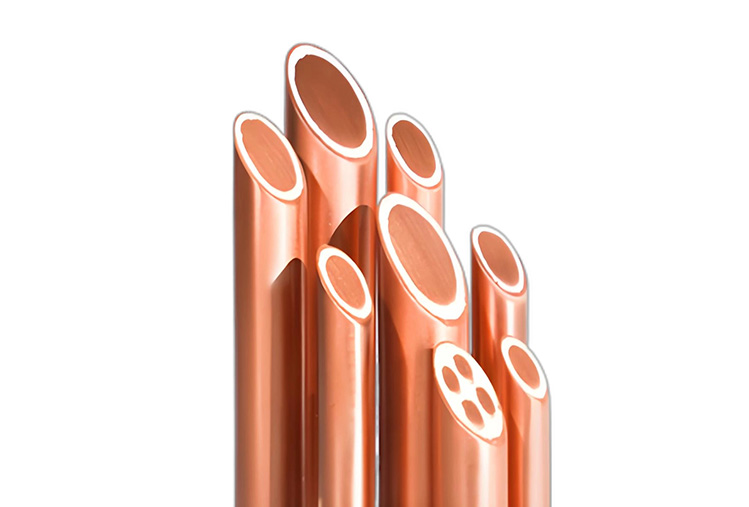

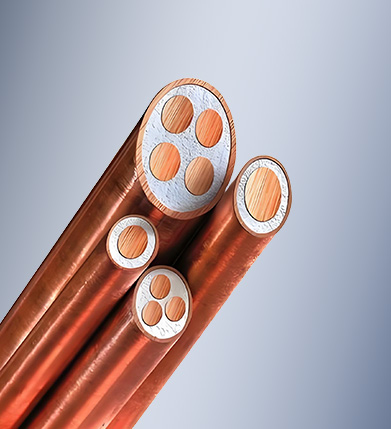

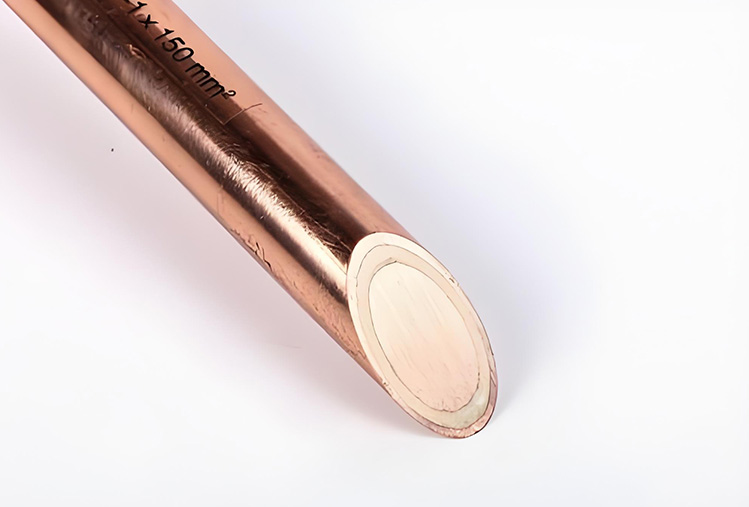

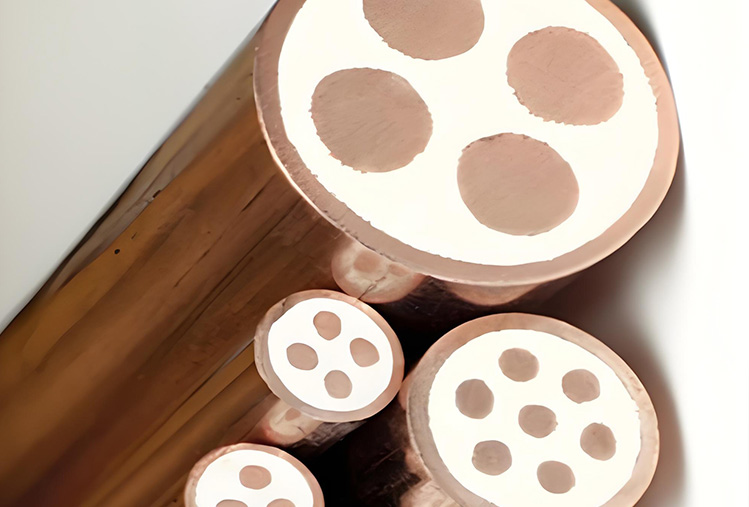

BTTZ - Rigid Mineral Insulated (MI) Cable
The Original Indestructible Standard. BS 6387 CWZ Certified.
BTTZ is the original, time-proven mineral insulated cable, setting the global benchmark for fire survival. It is constructed from solid copper conductors embedded in densely compressed magnesium oxide (MgO) powder, all housed within a seamless copper tube.
Overview
The Original Indestructible Standard. BS 6387 CWZ Certified.
BTTZ is the original, time-proven mineral insulated cable, setting the global benchmark for fire survival. It is constructed from solid copper conductors embedded in densely compressed magnesium oxide (MgO) powder, all housed within a seamless copper tube. This completely inorganic, monolithic structure guarantees circuit integrity for up to 3 hours at 950°C, even when subjected to water spray and mechanical shock. It is the definitive choice for the most critical life safety circuits and extreme environments.
Key Features & Benefits
- Highest Fire Rating: Certified to BS 6387 Categories C, W, Z (flame, water, shock)
- Absolutely Safe: Comprises only copper and mineral. Emits zero smoke, no toxic gases, and is inherently non-combustible.
- Exceptional Lifespan & Durability: The seamless copper sheath provides superior moisture, corrosion, and mechanical resistance. Service life can exceed 50 years.
- High Current Capacity, Compact Size: Excellent thermal conductivity allows for higher ampacity in a significantly smaller diameter compared to plastic cables.
Typical Applications
- Core power circuits for fire pumps, emergency generators, and life safety systems in high-rises, tunnels, and airports.
- Critical installations in nuclear facilities, petrochemical plants, and power stations.

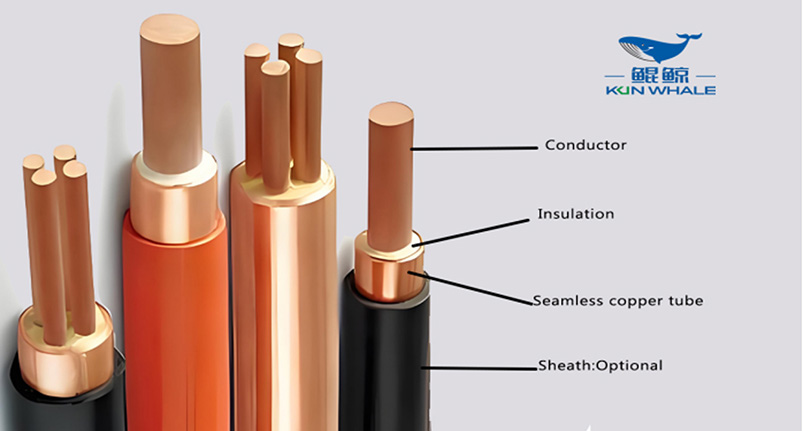

Construction
Conductor: Solid annealed copper wire.
Insulation: Highly compressed magnesium oxide (MgO) powder.
Sheath: Seamless copper tube.
Optional: PVC or LSZH outer coating for identification/corrosion protection
Technical Data
- Standards: BS 6387, IEC 60702-1, IEC 60331.
- Voltage Rating: 500V, 750V, 1000V.
- Operating Temp: Up to 250°C.
- Fire Resistance: Up to 3 hours.
- Bending Radius: Requires specialized bending tools (typically ≥ 6D, but depends on size).
